Applications
Domestic pressure system (with pressure switch and 18 litre pressure tank), water transfer, irrigation and garden supply
[/specification]CBI Series

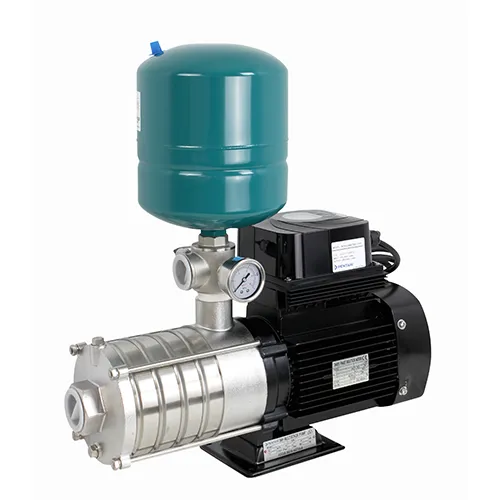

Designed for automatic water pressure boosting in domestic applications, light industry, washdown, rural and stock watering.
Key Features
- - Pressure switch and pressure tank for automatic pump operation
- - All stainless steel pump construction
- - Brass suction check valve supplied
- - Easy installation and operation
- - Supplied with 1.8m lead and 3 pin plug
Pressure Switch Control Features
Pressure Switch Controller
- - For perfect pressure and flow control
- - Pressure tank eliminates cycling
- - Simple installation — 25mm male connections
- - Low maintenance.
- - Saves energy through less pump starts and extends motor life
Construction Materials
- - Suction Chamber 304SS
- - Pump Housing 304SS
- - Intermediate Chamber 304SS
- - Impeller 304SS
- - Shaft 431SS
- - Shaft Seal SIC/Carbon
- - Drain & Priming Plugs 304SS
- - Base Plate 304SS
Operating Limits
- - Liquid Temp - 4°C to 40°C
- - Ambient Temperature - Maximum 40°C
- - Pumped Liquid - Clean water
Warranty: 2 years
